Your Plant Health map may be as detailed as a few centimeters per pixel. Management zones make the highly detailed agricultural maps into more manageable datasets by grouping similar regions (either geographically or visually) within a field. Categorizing your area of interest according to a range of values can lead to better understanding of overall crop health.
Use the DroneDeploy Grid & Zones tool to:
- Designate ranges of "healthy" and "unhealthy" according to your own knowledge of your field
- Ground truth more effectively
- Sample areas that are meaningful within your outside software
Access to Grid and Zones
All DroneDeploy paid customers on Pro, Business, or Enterprise accounts are able to use these tools on their Plant Health maps.
Follow the steps below to access DroneDeploy agricultural management tools.

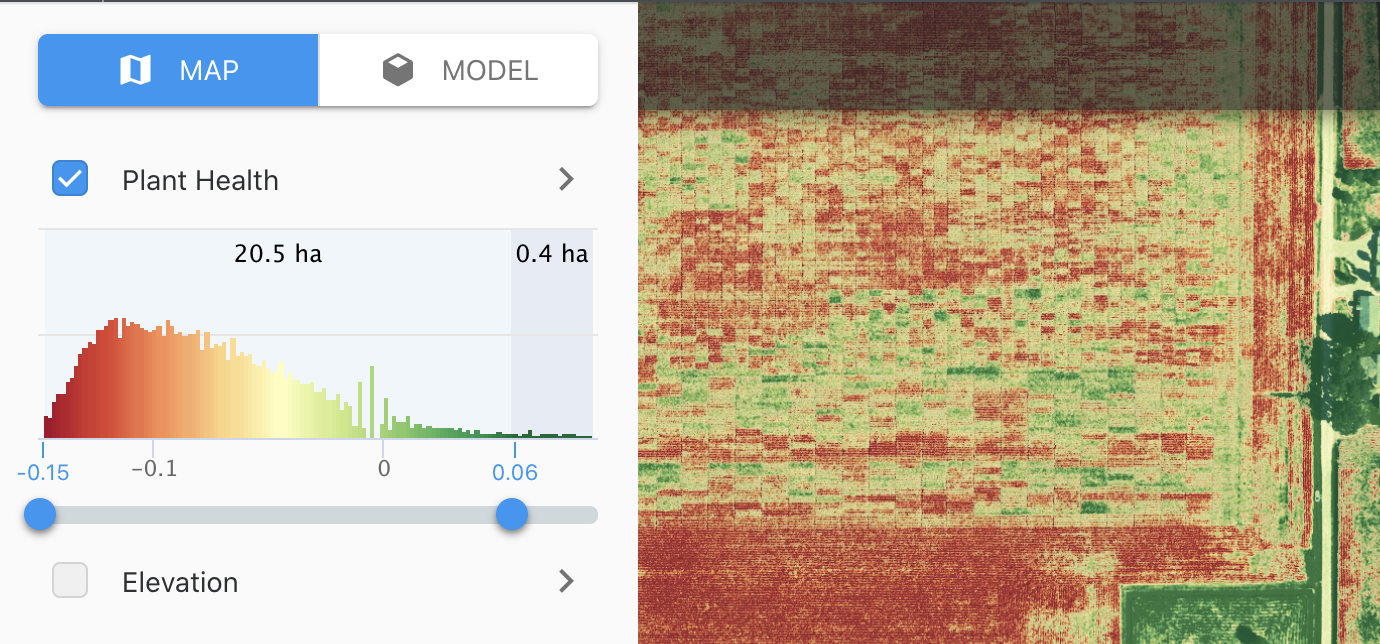

This will expand the your Plant Health Tool Bar and give you more options.

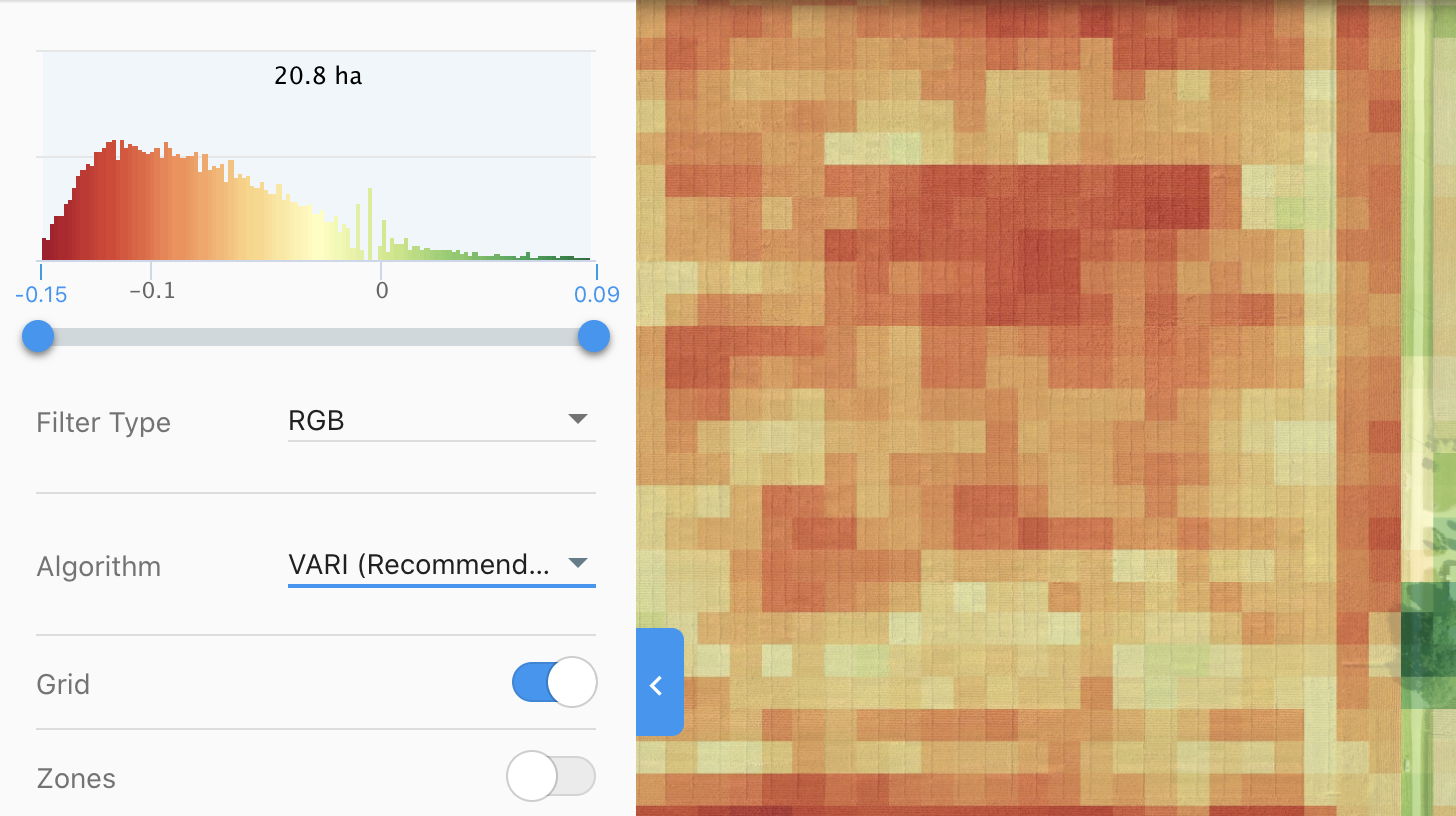

The Grid option converts the NDVI map into square pixels of roughly 50 ft.
This tool turns your map into three regions. You can tune the range of index values according to your crop or requirements by moving the blue dots on the slider. This should be done in conjunction with ground-truthing to ensure that the results are consistent with what's happening in the field.

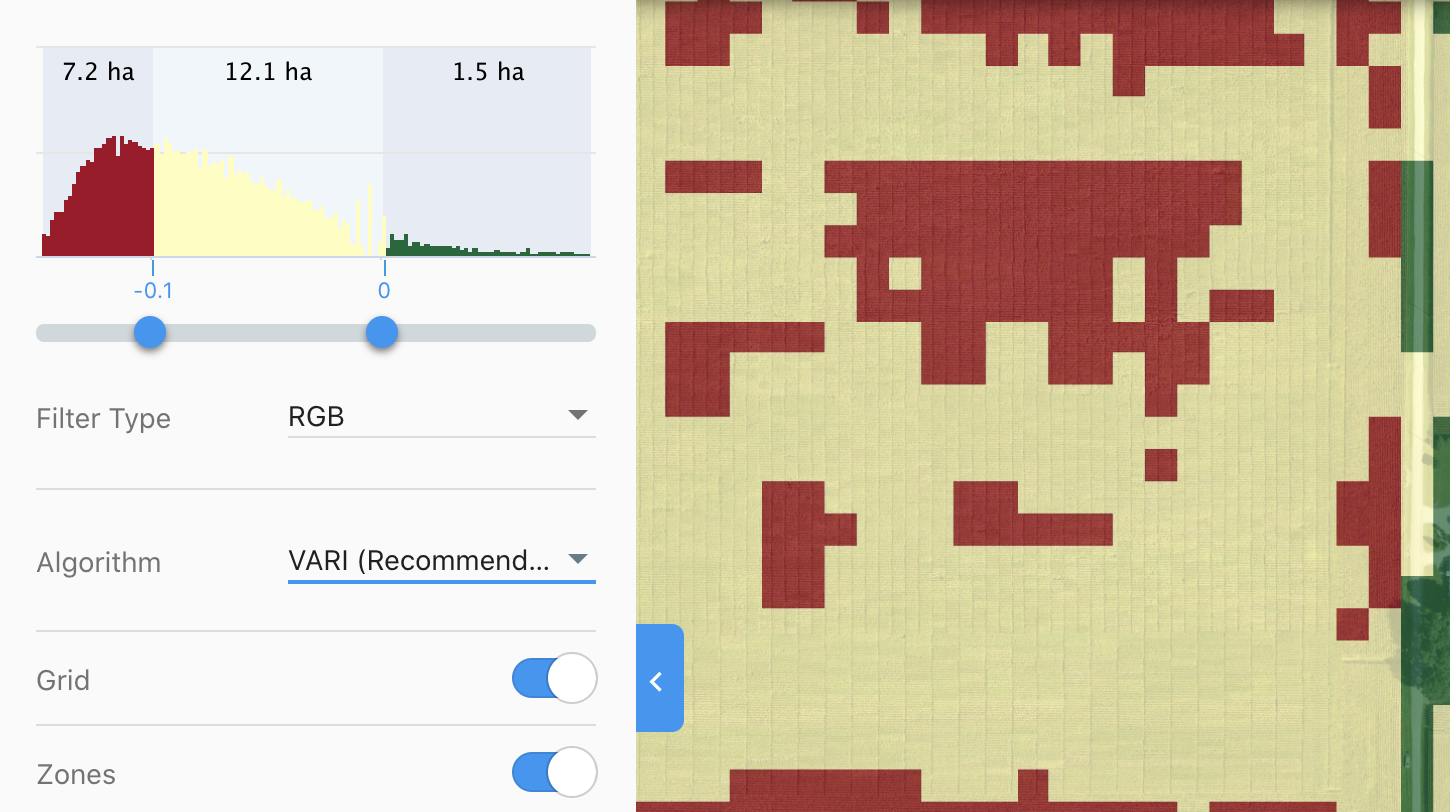

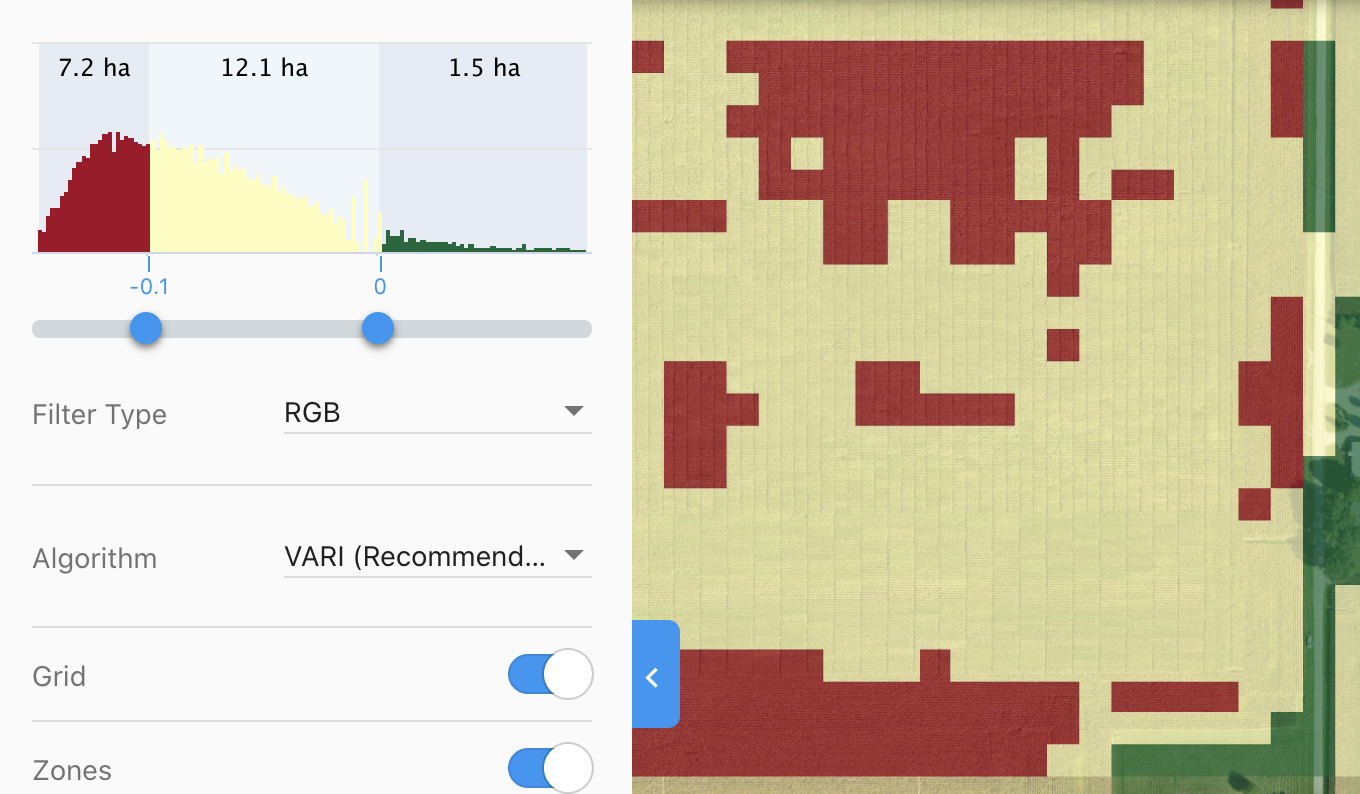

With selecting both zone and grid option, you get a grid of three zones. Again, you can tune the range under the histogram to reflect the correct crop and variability.
