DroneDeploy users can now use Procore to seamlessly import their drawings as overlays, export their DroneDeploy maps directly into their Procore account, and automatically sync DroneDeploy issues with Procore Observations

👍

Procore App Is Only Available to Enterprise Users

Talk to us about Enterprise

🚧

This integration supports exports up to 150MB

Adding Procore drawings as DroneDeploy Overlays

  1. Please navigate to the App Market icon on the left side of your dashboard. You can then search for the Procore app in the 'All Apps' section.

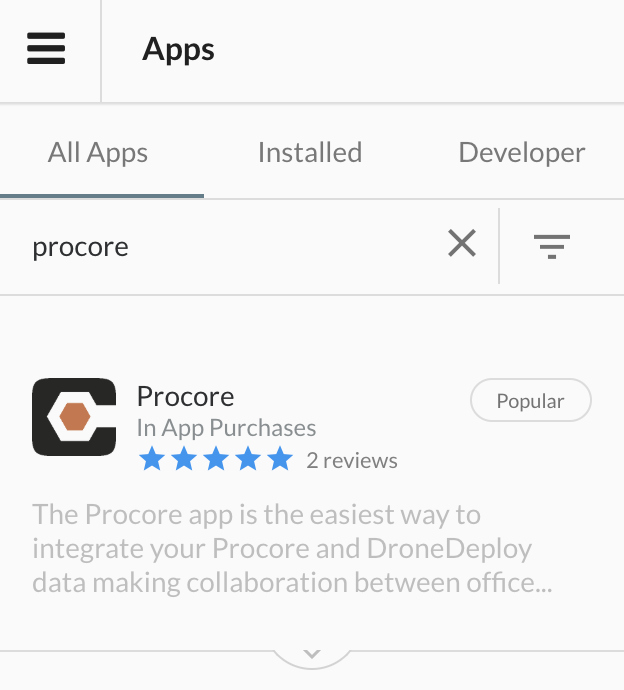

  1. You can search for 'Procore' in the 'All Apps' section. Please be sure to click it and click 'Install' to add it to your account.

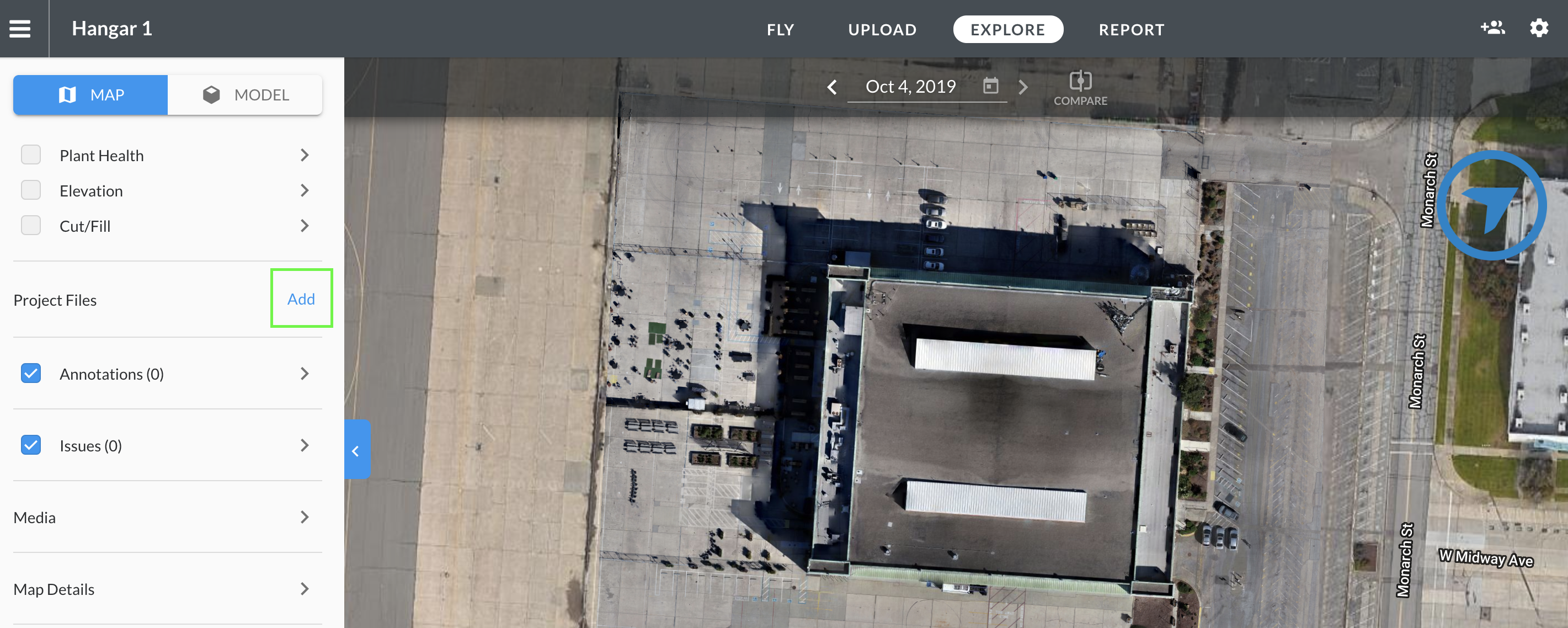

  1. Navigate to a DroneDeploy map and press “Add” next to 'Project FIles'.

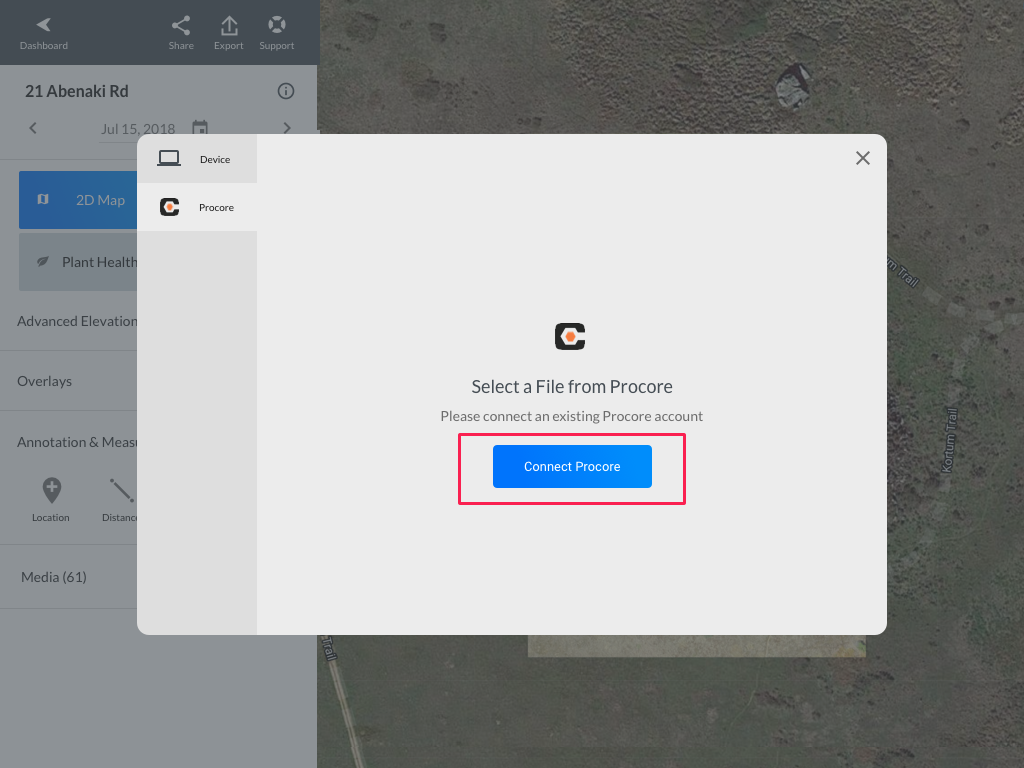

Step 3 - Click on the Procore tab in the new overlay modal and sign in with your Procore account.

🚧

Be sure to have pop-ups enabled for your browser.

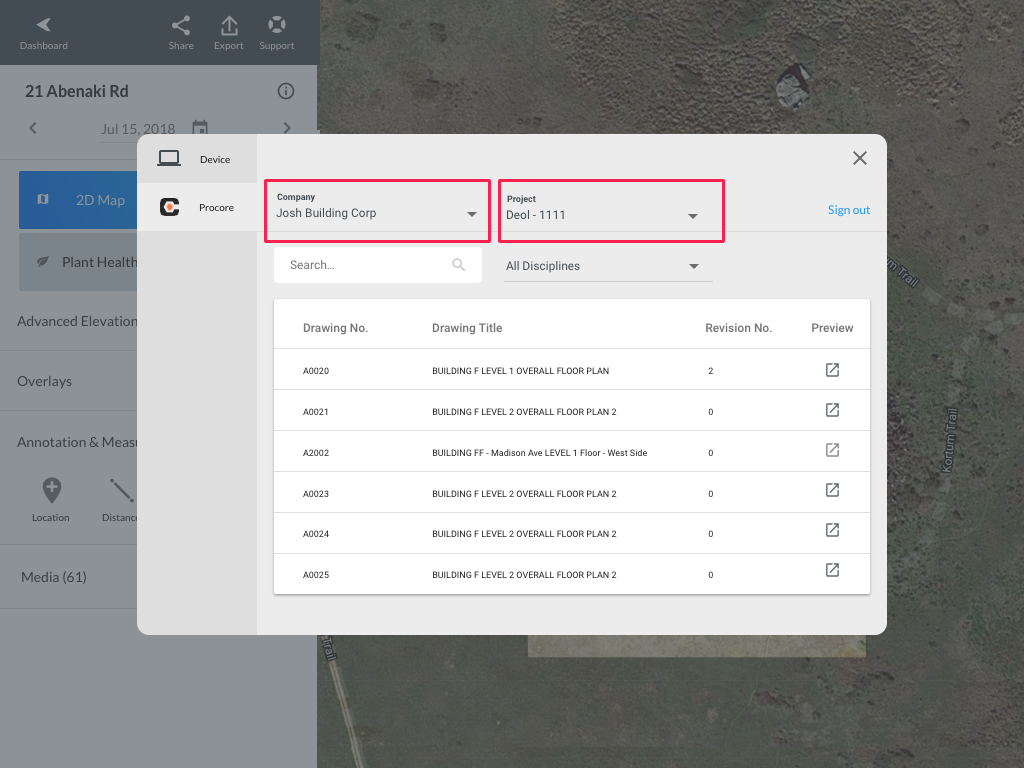

Step 4 - Select your Procore Company and Project to see your list of drawings.

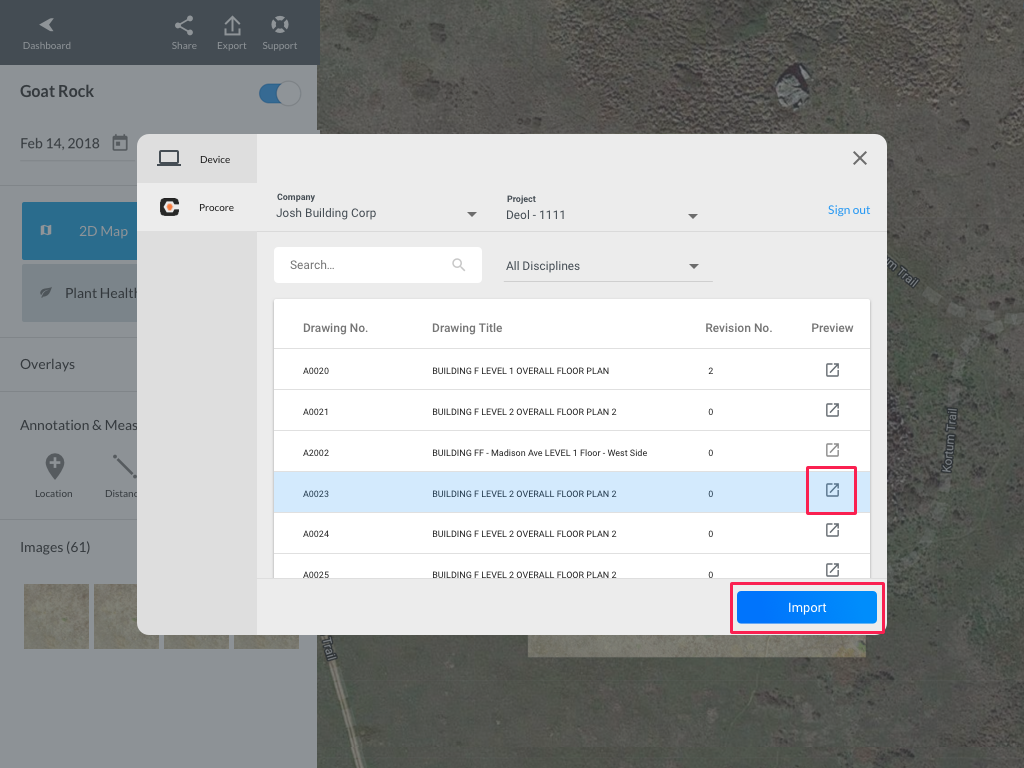

Step 5 - Select a drawing to import or preview a drawing before import.

From here, you can go ahead and add your overlay using our normal worfkow. More information can be found in our Overlay CAD Files with DroneDeploy document.

Auto-sync DroneDeploy overlay drawing revisions from Procore

Once you've imported a drawing from Procore into DroneDeploy as an overlay, you may wish to keep it up-to-date with the latest revisions made within Procore. Here's how you can set up your DroneDeploy overlay to automatically update as revisions are made in Procore.

Step 1 - configure your admin connection. If you are not an admin, contact your DroneDeploy admin to help set this stage up.

Step 2 - Navigate to your project settings in DroneDeploy

Step 3 - Select the Procore company and project that you would like to synchronize to and toggle on "Auto-sync drawing revisions"

Step 4 - now the drawings that you import from Procore will always stay up to date with the latest revisions.

Exporting Your DroneDeploy Map To Procore Photos

  1. Navigate to the export page for a DroneDeploy map.

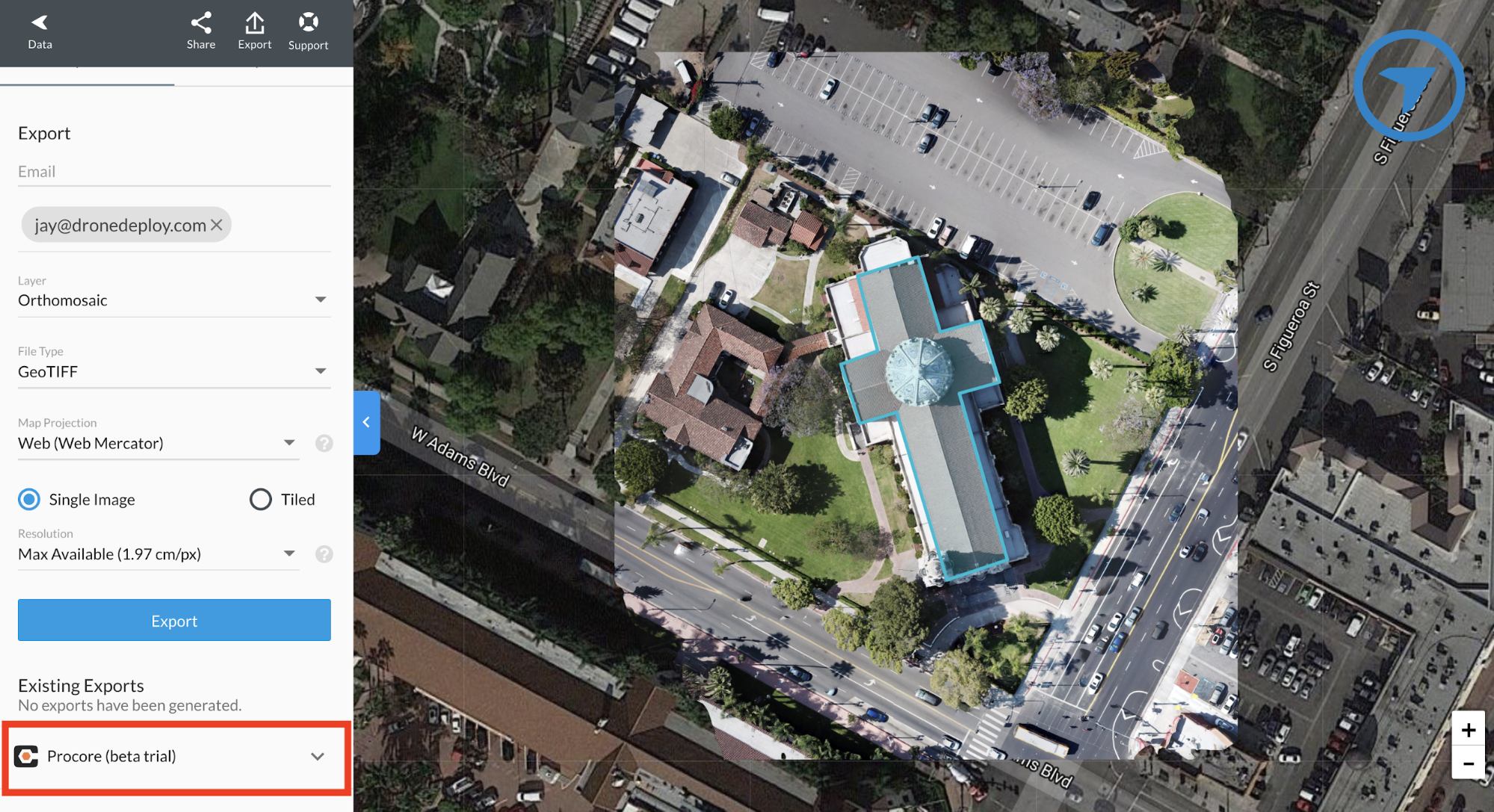

Step 3 - Expand the Procore app, and sign in with your Procore account if you have not already.

🚧

Be sure to have pop-ups enabled for your browser.

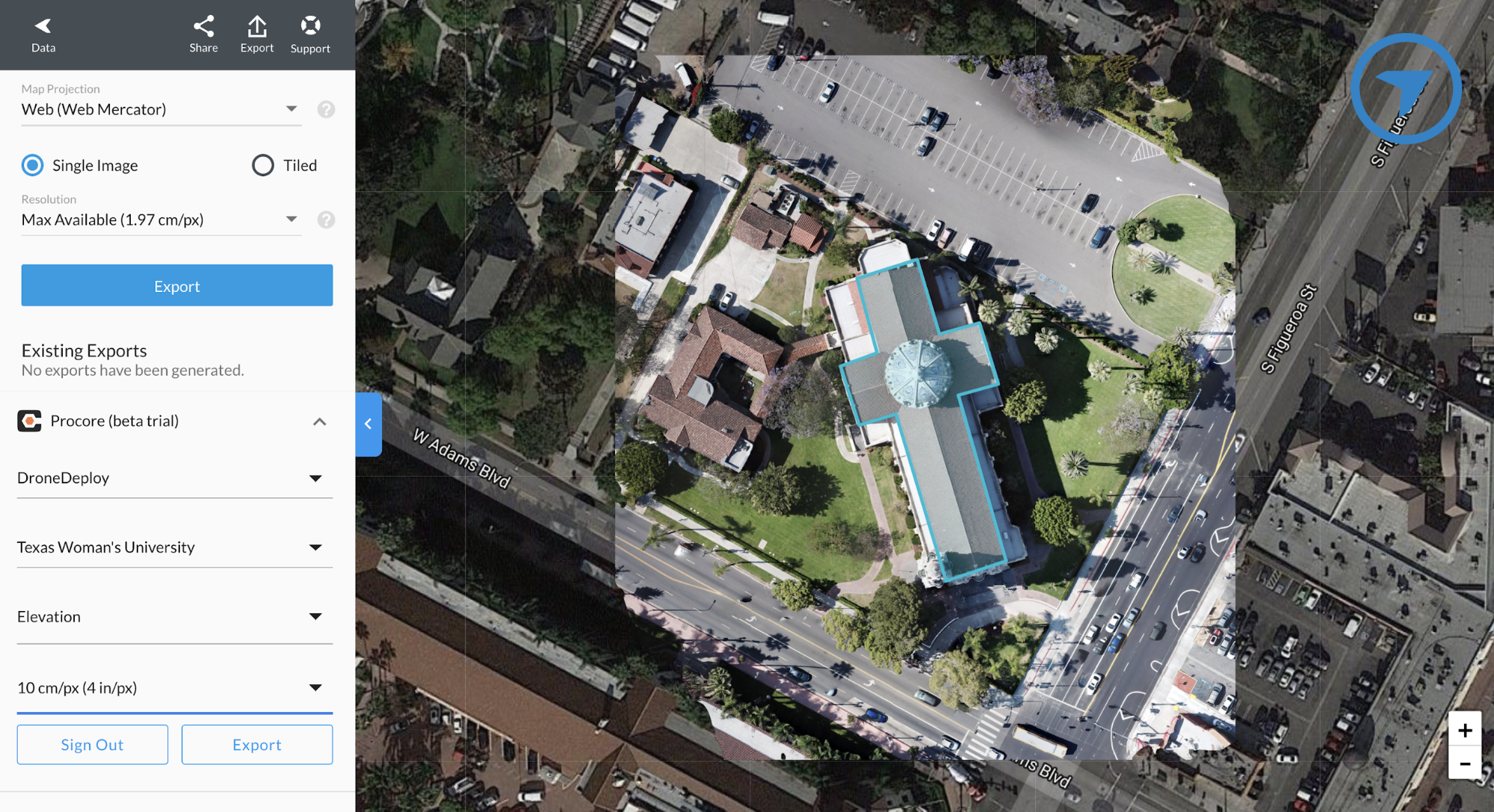

Step 4 - Choose the Company and Project to send the map to, and select the map layer and resolution.

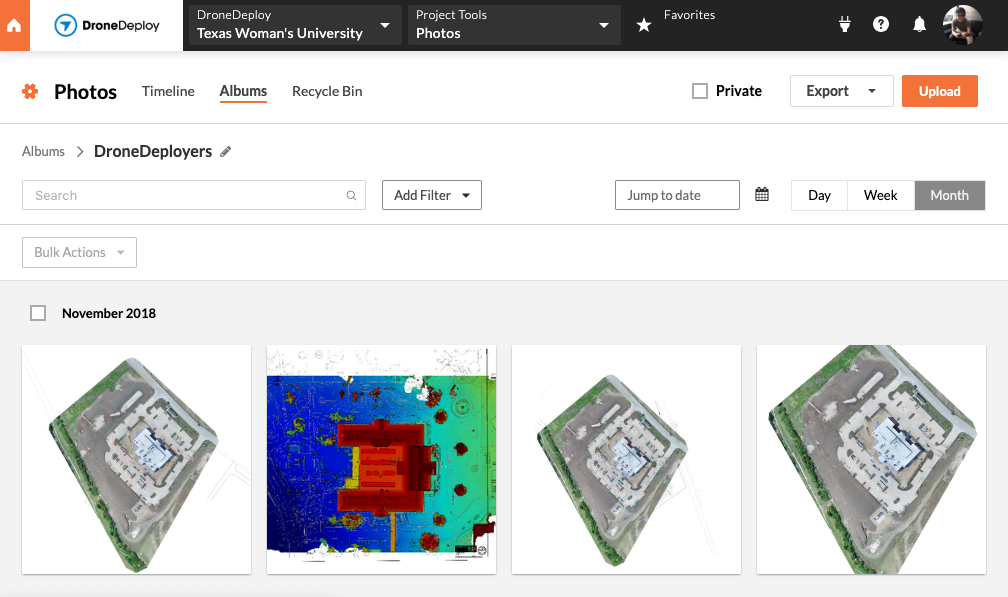

Step 5 - Press the export button. You will receive an email when the export is complete. You should see the map available in a photo album named “DroneDeploy”.

Auto Export DroneDeploy Maps and Photos to Procore

If you know you want the most up-to-date site reality data in your Procore project, you may wish to configure an auto export, rather than manually exporting the data each time.

After you've navigated to the Auto Exports settings window within DroneDeploy and have configured the parameters for your export, you're ready to finalize the Auto Export by pointing it to a destination within Procore.

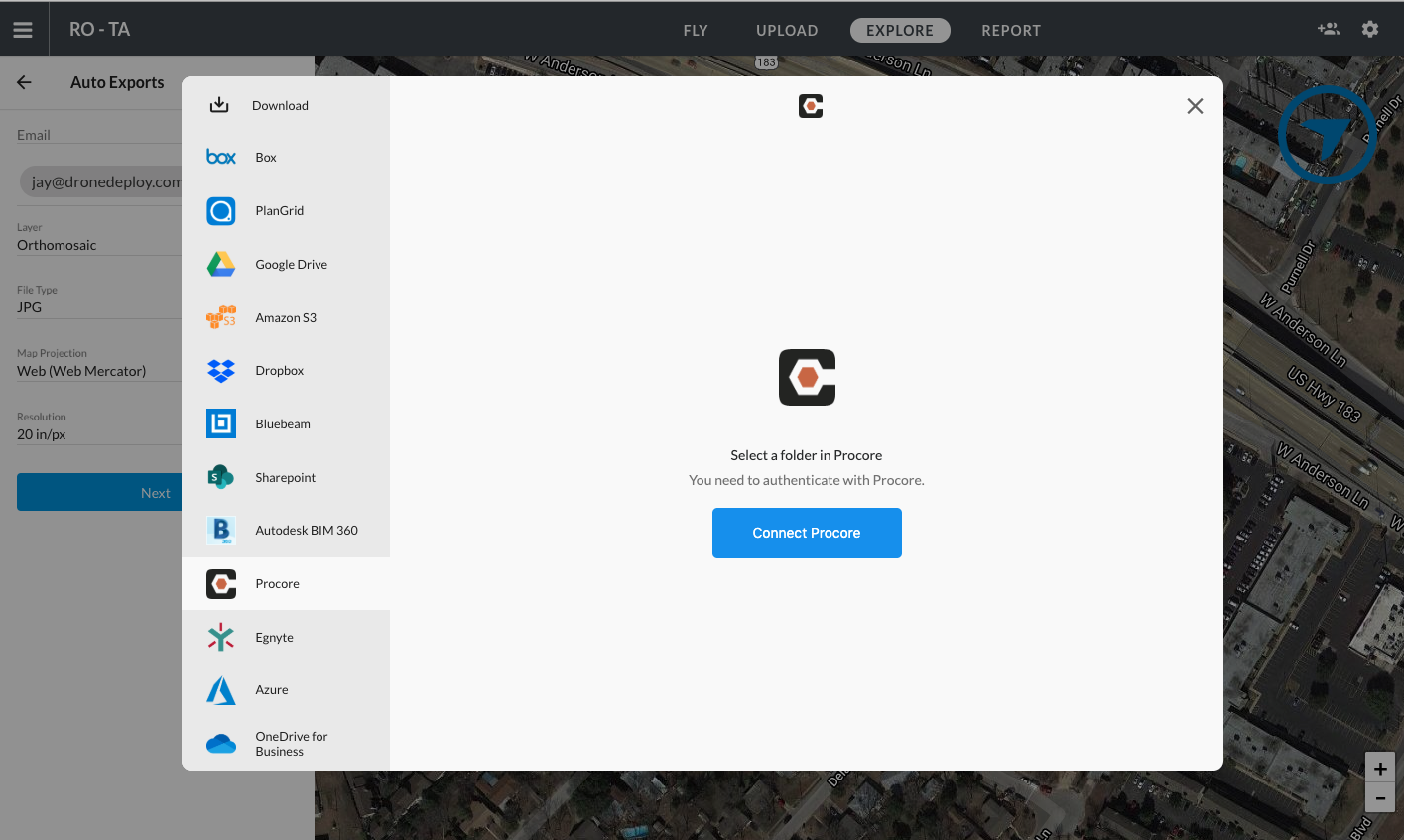

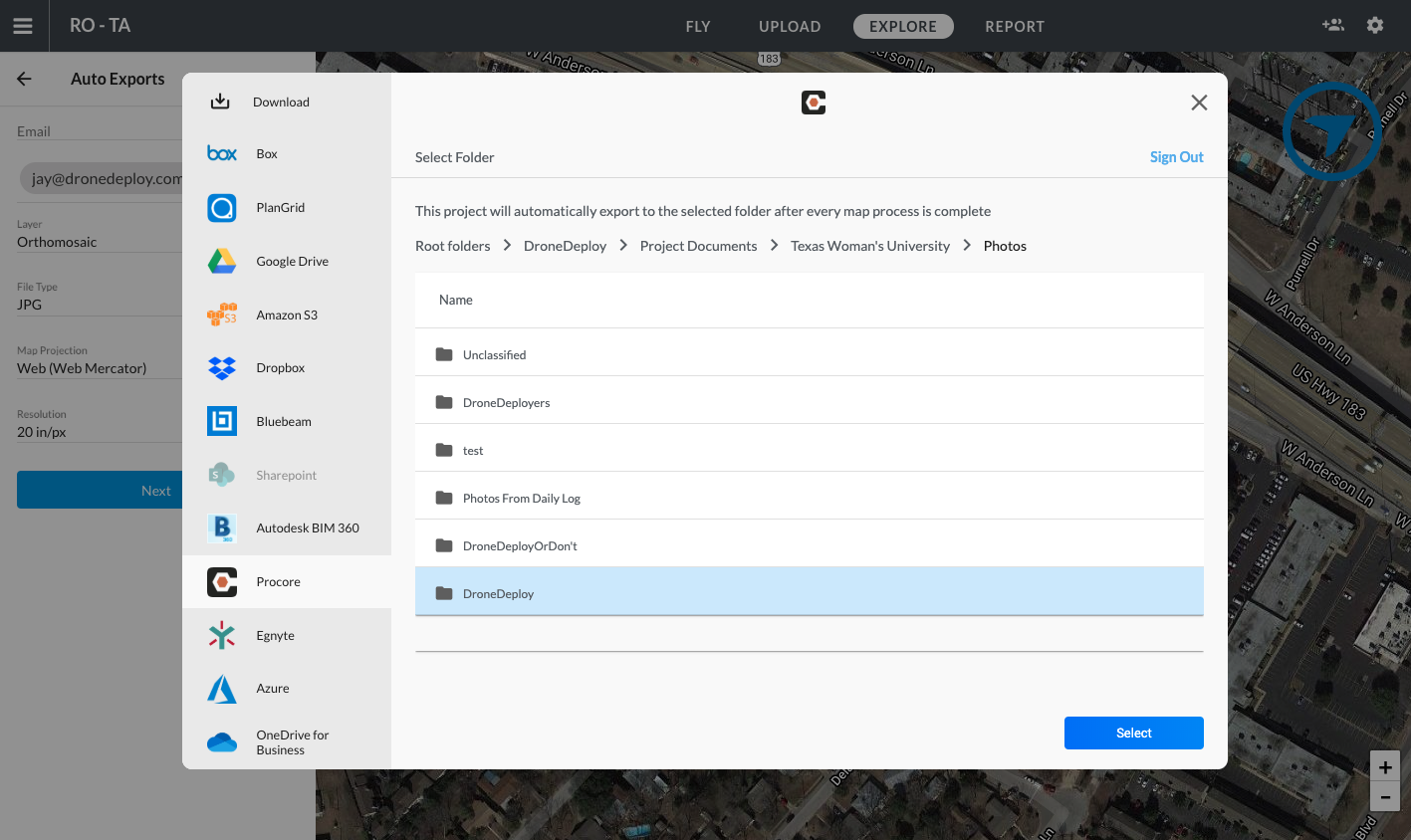

After selecting the Procore app, select the company, project, and folder within Photos or Documents you'd like your exports to land in.

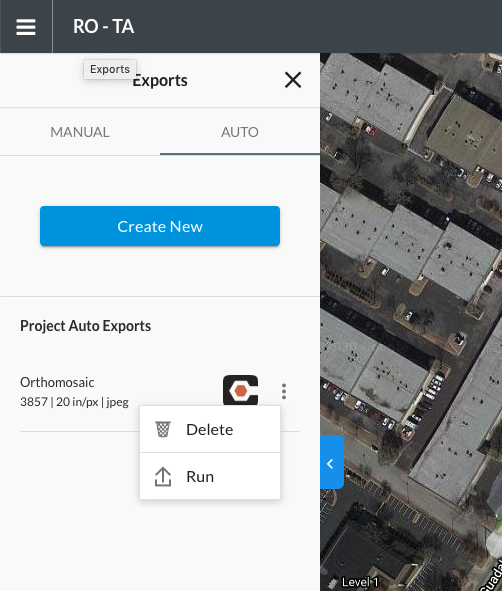

You can see your configured Auto Exports under the Auto Exports Menu section. You can delete an Auto Export by pressing on the three dots next to the name of the Export or you can choose to run the export on the selected map.

Auto-sync your progress photos to Daily Logs

Similarly, you can ensure new DroneDeploy progress photos automatically are pushed to Procore Daily Logs with a simple flip of a toggle.

Step 1 - Navigate to your project settings in DroneDeploy

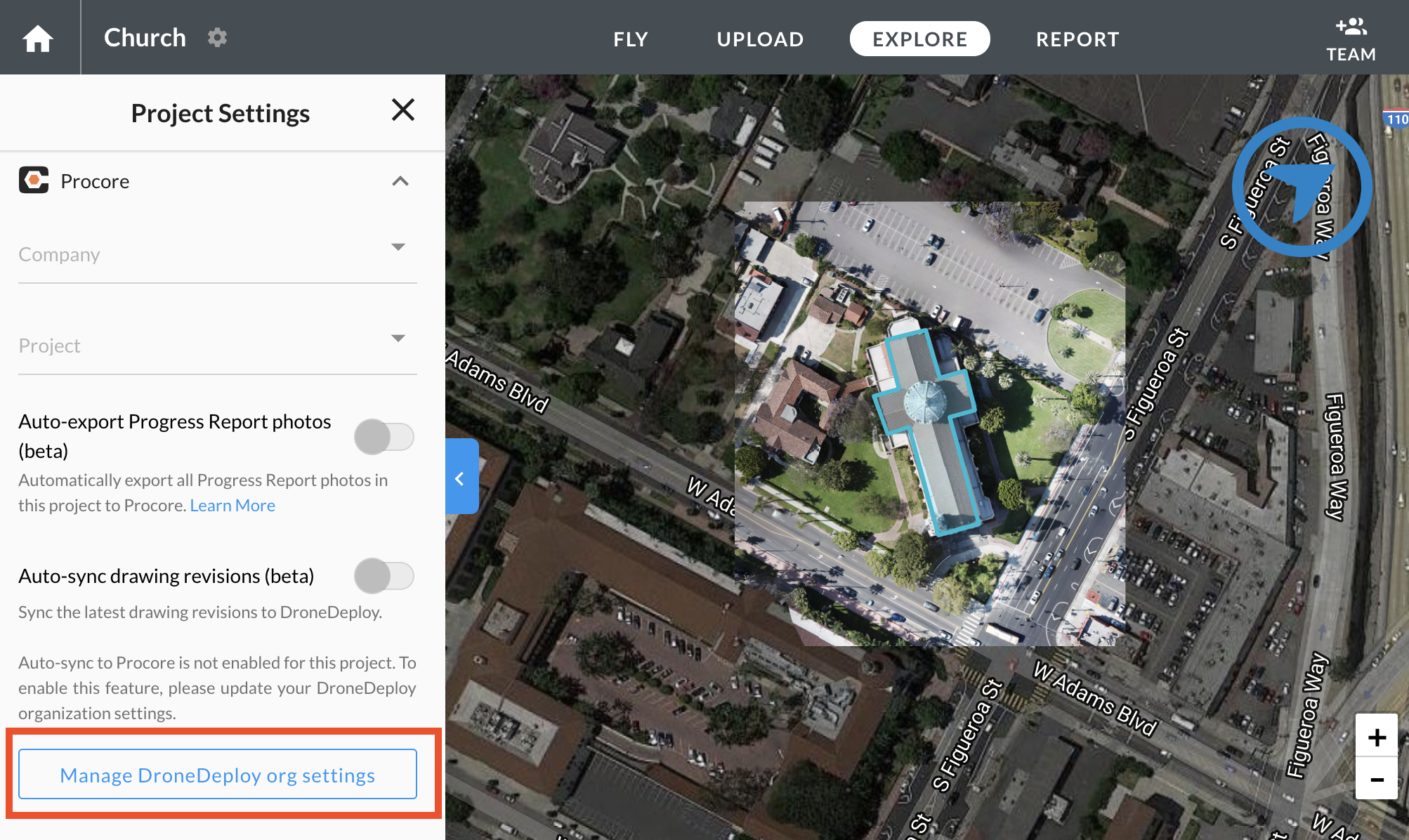

Step 2 - You will need to make a connection with an admin account that has the necessary permissions to the Procore project you would like to synchronize your progress photos to. Press "Manage DroneDeploy org settings" to set up your admin connection if you have not set it up already.

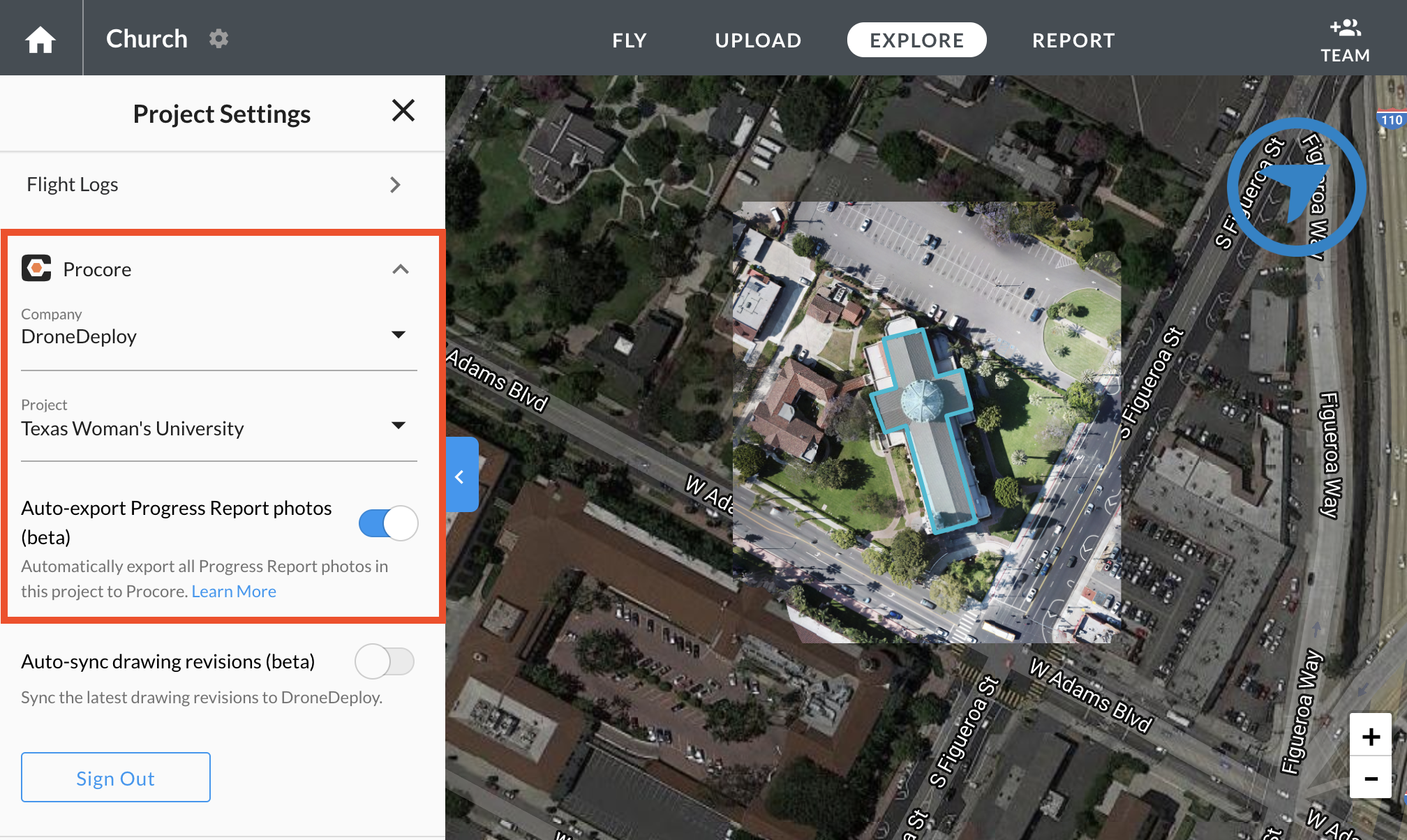

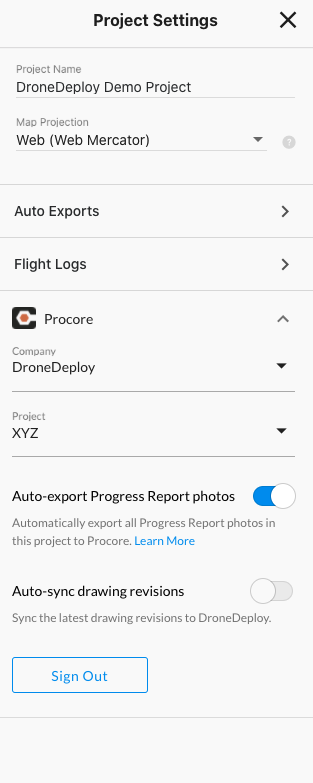

Step 3 - Select the Procore company and project that you would like to synchronize to and toggle on "Auto-export Progress Report photos"

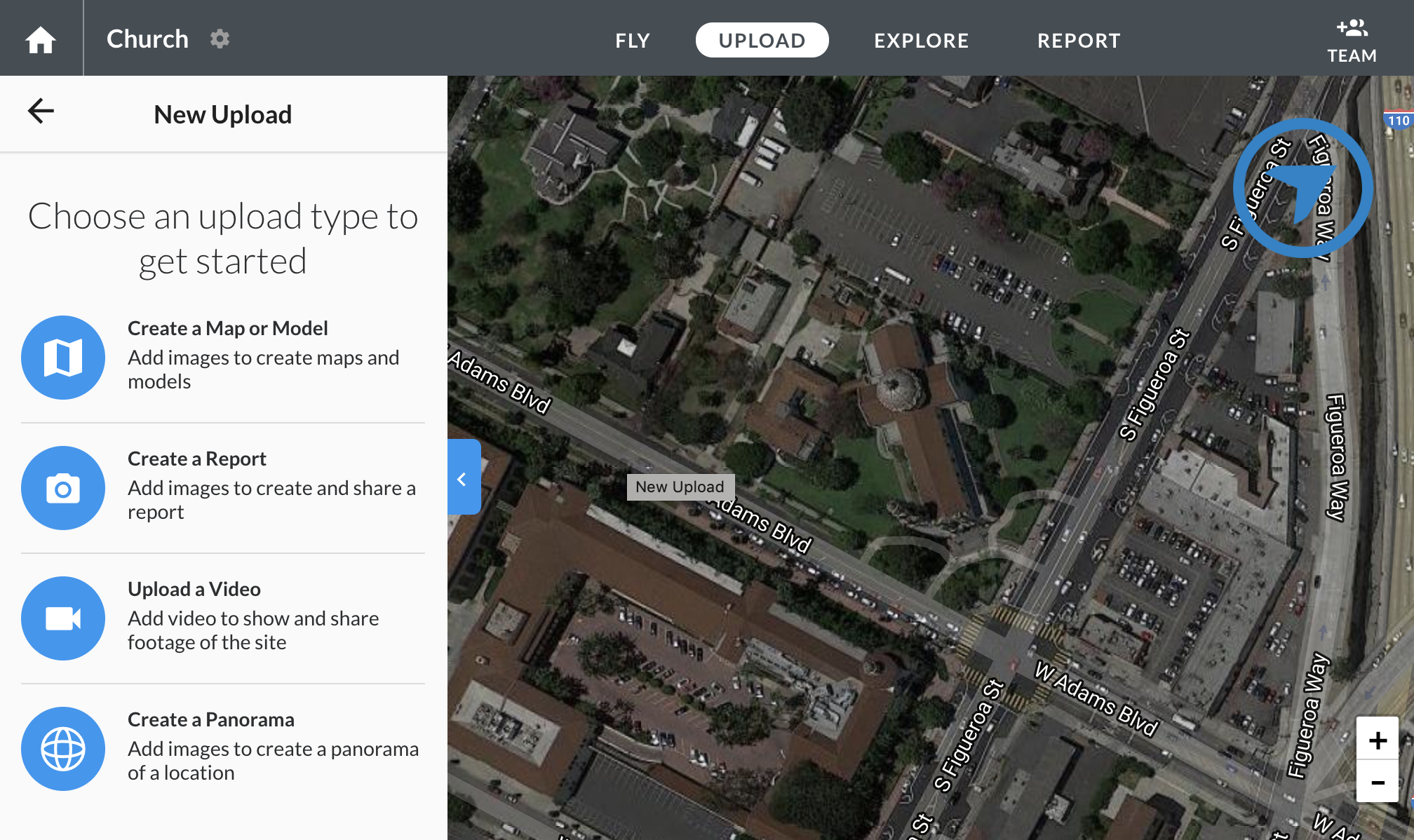

Step 4 - Test it out by uploading progress photos with "Create a Report" under the upload tab

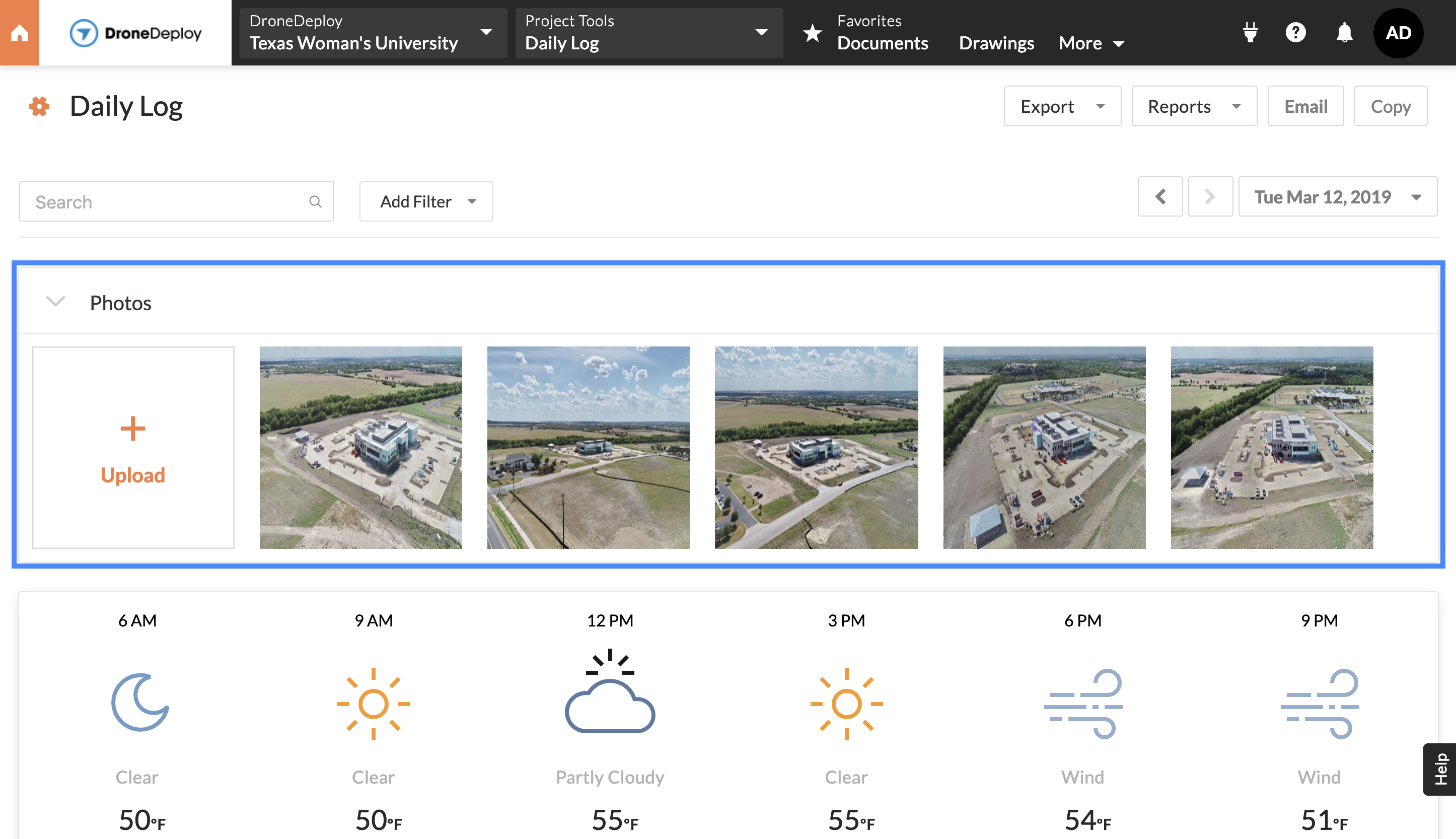

Step 5 - you should now see your progress photos attached to the correct daily log in Procore! You can even see them in your photo albums under the "DroneDeploy" folder.

Configure your admin connection

In order to leverage any of the auto-sync functionality, you will need a Procore admin account to facilitate the synchronization between the two systems.

If you are not the admin of your DroneDeploy organization, please ask an admin to complete this task.

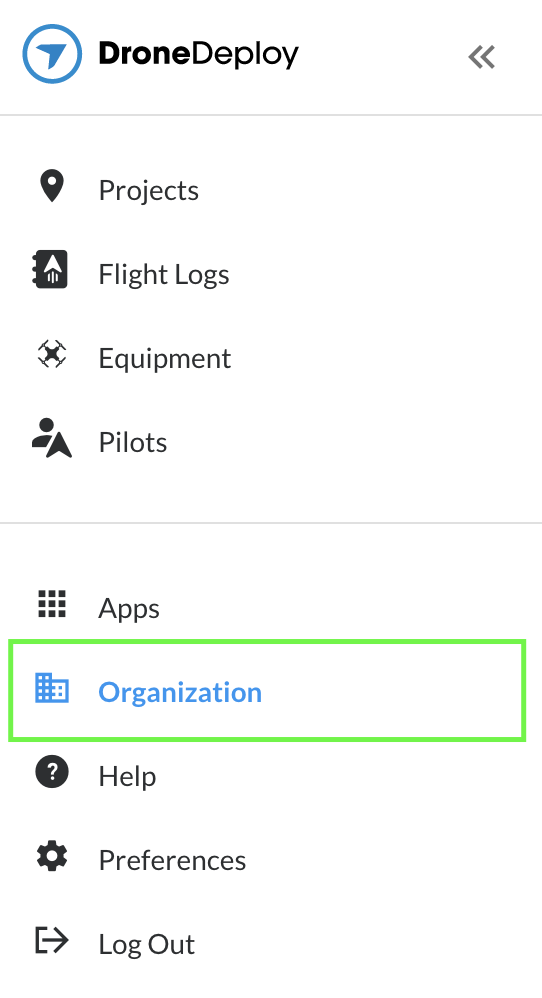

  1. Navigate to your organization settings

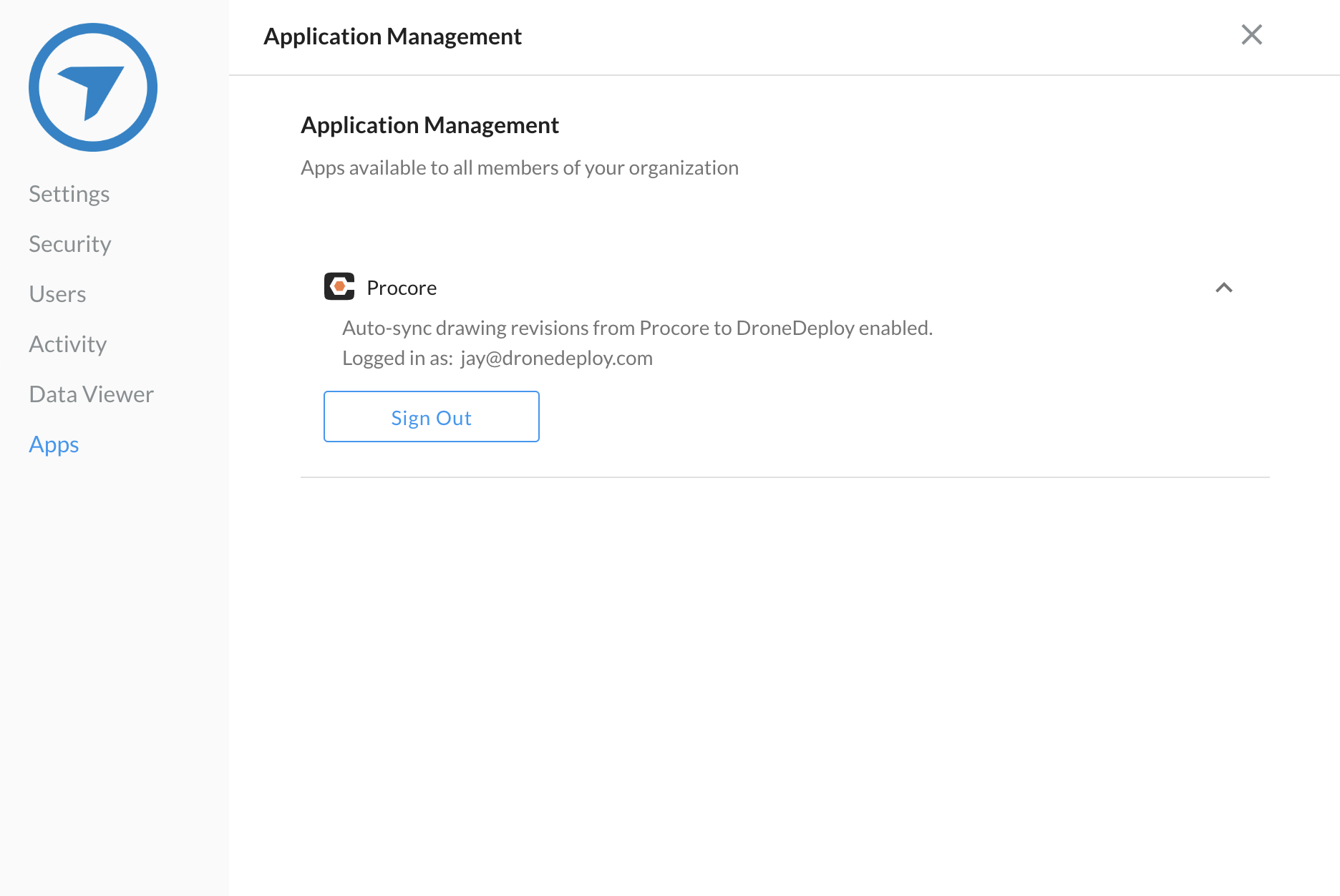

  1. Navigate to your app management page

Step 3 - Sign into your Procore admin account and you're all set!

DroneDeploy Embedded App in Procore

  1. Install the DroneDeploy App from the Procore Marketplace onto your Procore Account.

NOTE If you had installed the DroneDeploy app in Procore prior to 10/20/2020, you will need to locate the app in App Management and Uninstall then Reinstall it in order to update versions and access the Embedded App Configuration.

  1. Locate the DroneDeploy app from App Management in your Procore account, and configure which projects you'd like DroneDeploy's Embedded App on. Navigate to the DroneDeploy project you would like to associate with a Procore project, then copy the project ID from the URL into the Procore iframe form.

Now you should see the DroneDeploy app in the Apps dropdown for the configured projects, which project team members can navigate to for easy access to site reality. You can create multiple DroneDeploy app Configurations in Procore depending on the needs of your different projects.

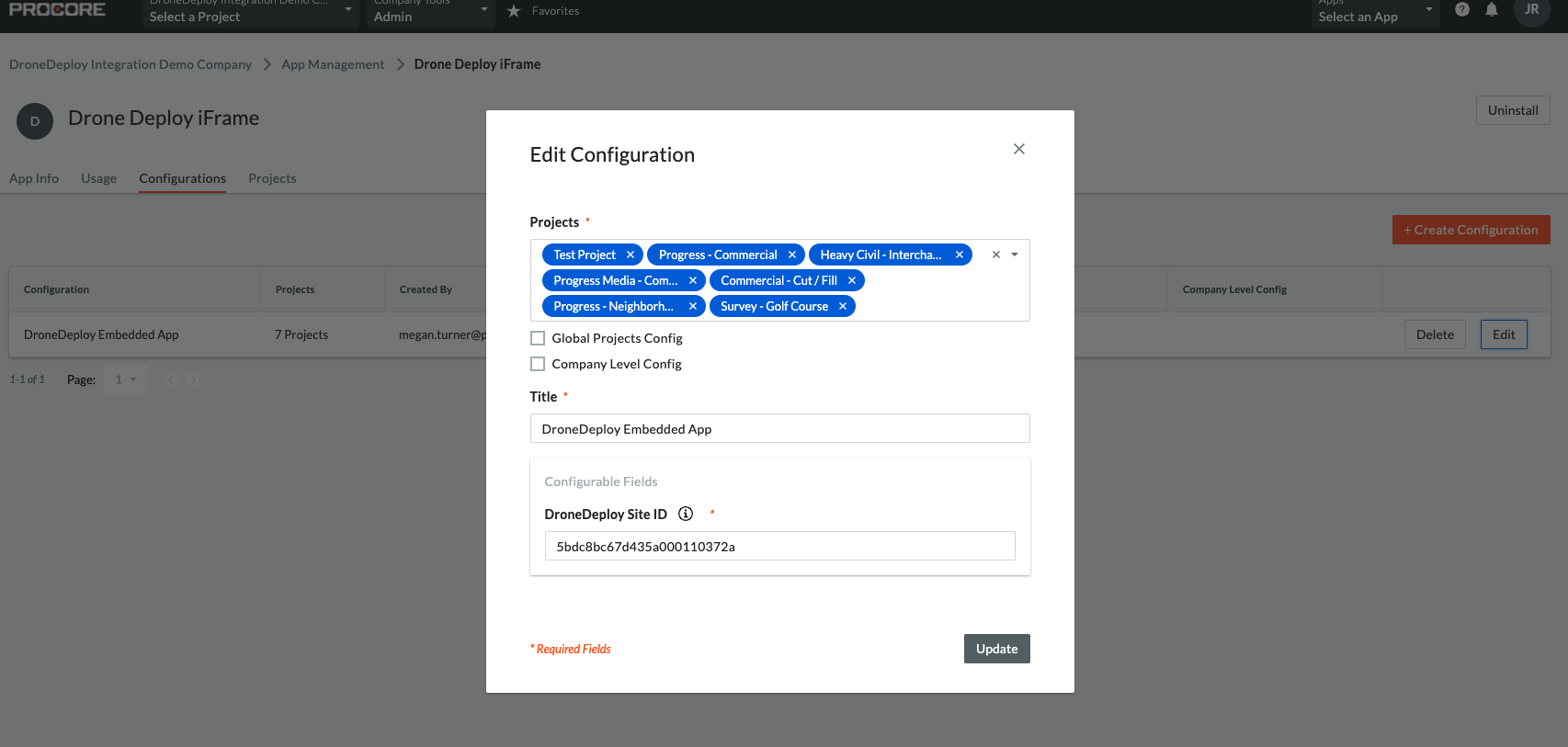

DroneDeploy app configuration in ProcoreDroneDeploy app configuration in Procore

DroneDeploy app configuration in Procore

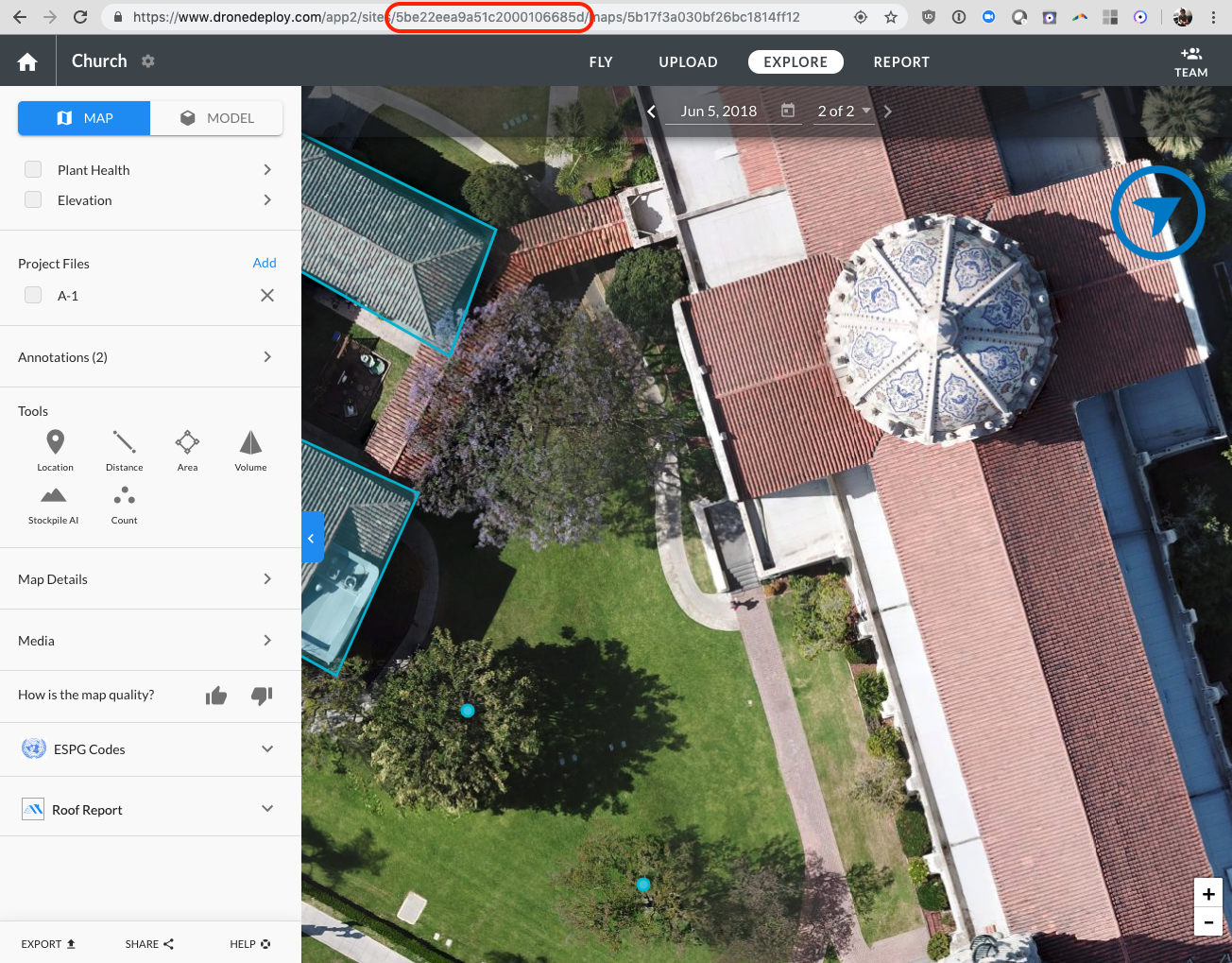

Locate your DroneDeploy project idLocate your DroneDeploy project id

Locate your DroneDeploy project id

Sync Issues to Observations tool in Procore

NOTE: Ensure you have the Observations tool enabled for your project in Procore, and that the account used for your Procore project connection in DroneDeploy has Standard or Admin permissions for the Observations tool on the connected project.

Step 1 - Install the Procore App and Configure your admin connection. If you are not an admin, contact your DroneDeploy admin to help set this stage up.

Step 2 - Navigate to your project settings in DroneDeploy

Step 3 - Select the Procore company and project that you would like to push Observations to

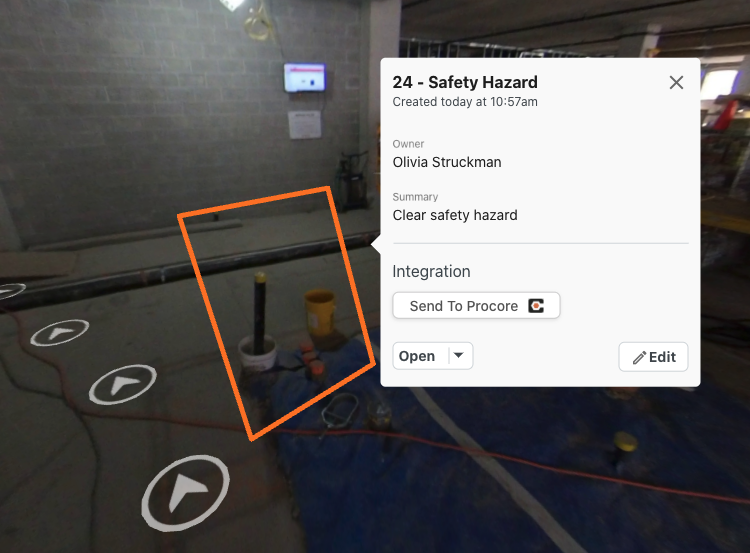

Step 4 - Now, issues created in DroneDeploy can be pushed to Procore Observations via the ‘Send to Procore’ button, along with a deep link back to the relevant DroneDeploy issue for visual context in the description. Once linked, DroneDeploy issues can be viewed and edited in Procore via the ‘View in Procore’ button.
